    Compact Structure Borehole Drilling Rig 250m Depth With Crawler Trailer Skid Type

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : GL250
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Compact Structure Borehole Drilling Rig 250m Depth With Crawler Trailer Skid Type

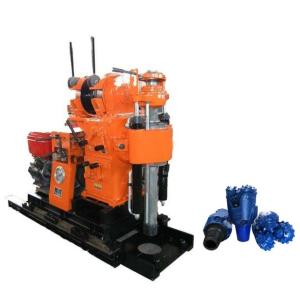

    GL250 Crawler Trailer Skid 250m Borehole Drilling Rig with Compact Structure


    The GL250 Borehole Drilling Rig can drill 250m in common,The initial hole diameter is normally to be 200mm. The final hole diameter is normally to be 75mm. We can also equip other sizes of drilling tools as per your projects.
    The GL250 Borehole Drilling Rig is equipped with 20kw diesel engine. If you have special requirements, we accept customized design as well.
    The GL250 Borehole Drilling Rig have compact structure. The dimensions is 1700X1030X1270mm. The angle range it can drill is 75°-90°.

    Tehnical Parameter:


    ModelsXY-1XY-1AGL200GL250GL300
    DrillDrilling depth100m100/180 m250m250m300m
    Initial hole dia110mm150mm200mm200mm200mm
    Final hole dia75mm75mm75mm75mm75mm
    Drill rod dia42mm43mm50mm50mm50mm
    Angle range75°-90°75°-90°75°-90°75°-90°75°-90°
    Dimensions(L×W×H)1640×1030×1440 (mm)1620×970×1560(mm)1700×1030×1270 (mm)1700X1030X1270(mm)1070×1030×1270 (mm)
    Swivel HeadSpindle stroke450mm450mm450mm450mm450mm
    Spindle lifting capacity max25KN25KN30KN30 KNmax 45 KN
    HoistMax .lifting capacity(single rope)10KN15KN20/40/90/18020KN20KN
    Powerdiesel engineModelS1100A2S1100A2L28NL28NL28N
    Rated power10.3KW10.3KW16.2KW20KW20KW
    Rated speed2000r/min2200r/min2200r/min2000r/min2000r/min
    motorModelY132M-4Y160M‐4Y160L-4Y160L-4Y160L-4
    Rated power7.5kW11KW11KW15KW15KW
    Rated speed1440r/min1460r/min1460r/min1440r/min1440r/min

    Features:

    1. 250m is the widely drilled depth
    2. It can be based on crawler or trailer chassis.
    3. Easy operation and maintain.
    4. Low cost needed.


    Company Profile


    Compact Structure Borehole Drilling Rig 250m Depth With Crawler Trailer Skid Type

    Glorytek Industry (Beijing)Co.,Ltd.,

    We have extensive experience supplying small core drilling rigs. These drilling rigs are widely used in geological exploration, metal exploration, water well drilling and other projects. Our factory has a complete quality inspection team, mature production lines and experienced engineers. So far, we have established stable and long-term cooperative relationships with customers in more than 60 countries.
